Profileuse pour profilés de porte roulante
Machine de formage de rails incluant machine de formage de rails de portes, profileuse de crémaillère solaire, profileuse de rail de guidage, etc. L'épaisseur de travail peut être de 1.5-2.5mm. La vitesse de travail max peut être de 25m/min.

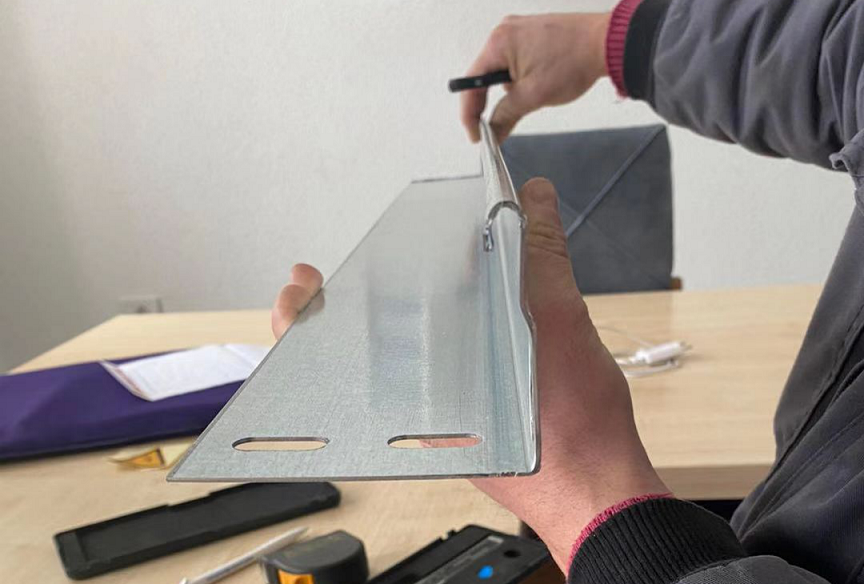

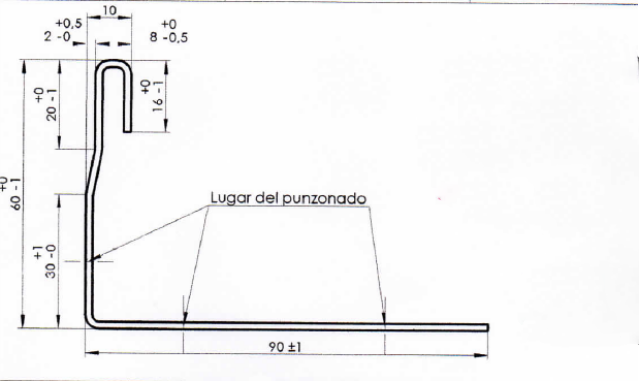

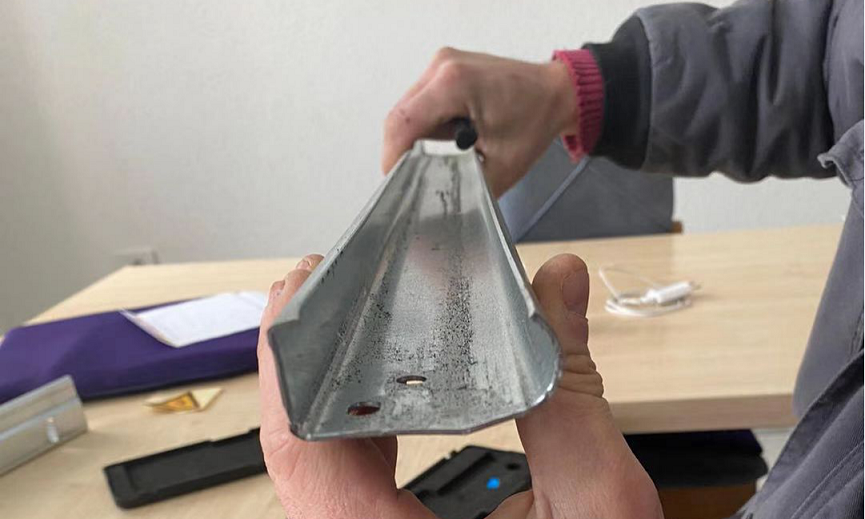

Nous avons exporté une ligne de profilage pour rails de porte en Argentine. Nous pouvons faire des rails de porte courbés comme sur la photo. Nous recommandons un système d'entraînement par boîte de vitesse et un système de cisaillement volant pour que notre machine fonctionne à haute vitesse.
|

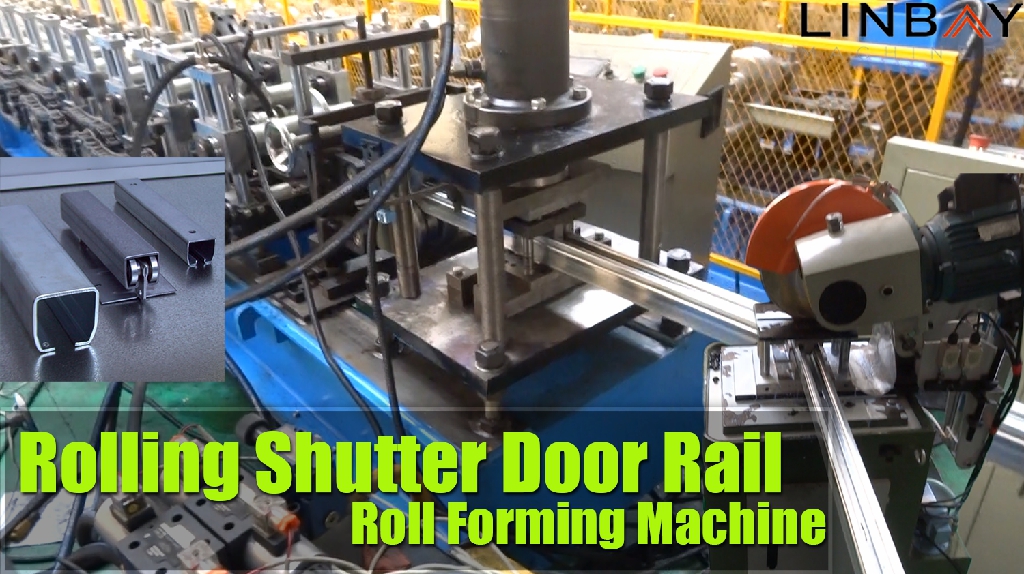

Rail/Door track roll forming machine |
|||
|
No. |
Item |
Specification |
Optional |
|
1 |
Suitable material |
Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
|
Thickness(mm):1.5-2.5 |
|||
|
Yield strength: 250 - 550MPa |
|||
|
Tensil stress( Mpa):G350Mpa-G550Mpa |
|||
|
2 |
Nominal forming speed(m/min) |
10-20 |
Or according to your requirement |
|
3 |
Forming station |
17 |
According to your profile |
|
4 |
Decoiler |
Manual decoiler |
Hydraulic decoiler or double head decoiler |
|
5 |
Main machine motor |
Sino-German Brand |
Siemens |
|
6 |
PLC brand |
Panasonic |
Siemens |
|
7 |
Inverter brand |
Yaskawa |
|
|
8 |
Driving system |
Gearbox drive |
Chain drive |
|
9 |
Rollers’ materail |
Steel #45 |
GCr15 |
|
10 |
Station structure |
Torri stand structure |
Forged Iron station |
|
11 |
Punching system |
No |
Hydraulic punching station or Punching press |
|
12 |
Cutting system |
Post-cutting |
Pre-cutting |
|
13 |
Power supply requirement |
380V 60Hz |
Or according to your requirement |
|
14 |
Machine color |
Industrial blue |
Or according to your requirement |
Manual decoiler--leveling--forming machine--hydraulic cutting--out table
Hereby LINBAY will explain how we do the installation of our roll forming machine.
First, we adjust the machine in our plant, we will ask which size you are going to produce first, we put the machine in the size it is going to produce and adjust all the correct parameters before the shipment, so you do not need to change anything when you got this machine.
Second when we disassemble the machine for debug, we take videos so that you know how to connect them. Each machine has its video. In the video, it will show how to connect the cables and tubes, put the oils, put together the physical structures etc ...
Here is an example of that video: https://youtu.be/p4EdBkqgPVo
Third, when you receive the equipment, you will have a wahtsapp or wechat group, our engineer (He speaks English and Russian) and I (I speak English and Spanish) will be in the group to support you in any doubt.
Fourth, we send you a manual in English or Spanish so that you understand all the meanings of the buttons and how to start the machine.
We have a case that my client from Vietnam received his machine on November 25, and put it on brand at night, and started producing on November 26. And besides this, we have achieved many successes in installing more complicated machines. There is no problem with the installation of your machine. LINBAY offers the best quality and the best service for our clients, especially in this situation. You don't have to wait until the COVID pass. You can produce the profiles right away with our machines.
-
Others
-
scrap collector
-
pasting
-
mould change
-
guiding head
-
Cooling system
-
-
Out table
-
non-powered
-
auto stacker
-
-
Cutting
-
saw cutting
-
flying shear
-
-
Driving
-
chain drive
-
gearbox drive
-
gearbox drive with coupling
-
-
Stands
-
wall panel stands
-
torri stands
-
forged iron stands
-
wall panel for Cpurlin
-
-
Punching
-
hydraulic punching station
-
punching press
-
roller punching
-
-
Feeding
-
leveling
-
servo feeding
-
-
Decoiler
-
manual decoiler
-
hydraulic decoiler
-
double head decoiler
-
Hereby LINBAY will explain how we do the installation of our roll forming machine.
First, we adjust the machine in our plant, we will ask which size you are going to produce first, we put the machine in the size it is going to produce and adjust all the correct parameters before the shipment, so you do not need to change anything when you got this machine.
Second when we disassemble the machine for debug, we take videos so that you know how to connect them. Each machine has its video. In the video, it will show how to connect the cables and tubes, put the oils, put together the physical structures etc ...
Here is an example of that video: https://youtu.be/p4EdBkqgPVo
Third, when you receive the equipment, you will have a wahtsapp or wechat group, our engineer (He speaks English and Russian) and I (I speak English and Spanish) will be in the group to support you in any doubt.
Fourth, we send you a manual in English or Spanish so that you understand all the meanings of the buttons and how to start the machine.
We have a case that my client from Vietnam received his machine on November 25, and put it on brand at night, and started producing on November 26. And besides this, we have achieved many successes in installing more complicated machines. There is no problem with the installation of your machine. LINBAY offers the best quality and the best service for our clients, especially in this situation. You don't have to wait until the COVID pass. You can produce the profiles right away with our machines.
